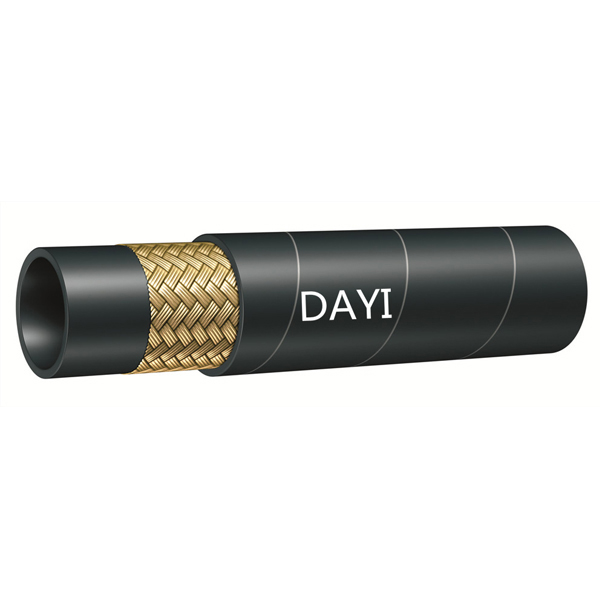

Wire braided hydraulic hose (wrapped cover/smooth cover)
-
SAE 100R1/DIN EN 853 1SN(wrapped cover/smooth cover)
CONSTRUCTION:
This hose consists of an inner tube of oil synthetic rubber, single wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.
APPLICATIONS:
Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
WORKING TEMPERATURE:
From-40℃ up to +100℃
-

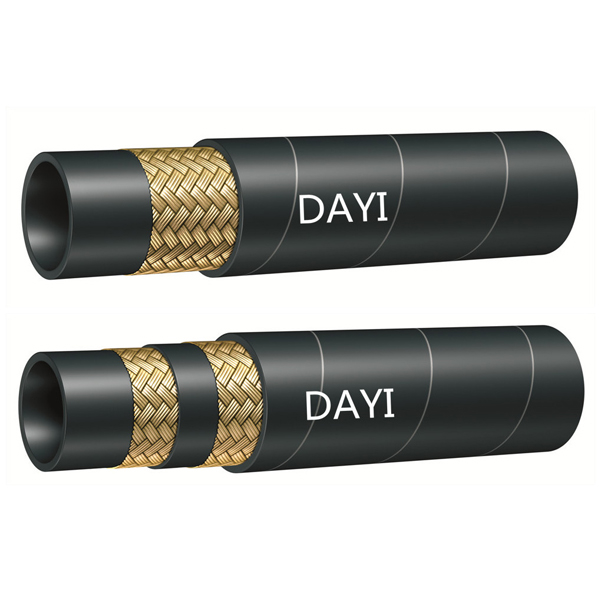

SAE 100R2/DIN EN 853 2SN(wrapped cover/smooth cover)
CONSTRUCTION
This hose consists of an inner tube of oil synthetic rubber, two wire braids reinforcement, and an oil and weather resistant synthetic rubber cover.
APPLICATIONS
Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
WORKING TEMPERATURE
From-40 degree up to +100 degree
-
DIN EN 857 1SC(wrapped cover/smooth cover)
CONSTRUCTION:
This hose consists of an inner tube of oil synthetic rubber, single wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.
APPLICATIONS:
Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
WORKING TEMPERATURE:
From-40℃ up to +100℃
-
DIN EN 857 2SC(wrapped cover/smooth cover)
CONSTRUCTION:
This hose consists of an inner tube of oil synthetic rubber, 2 wires braid reinforcement, and an oil and weather resistant synthetic rubber cover.
APPLICATIONS:
Hose range suitable to carry hydraulic fluids such as glycol, mineral oils、fuels、lubrication、emulsion、hydrocarbons etc.
WORKING TEMPERATURE:
From-40℃ up to +100℃
-
SAE 100 R16(wrapped cover/smooth cover)
CONSTRUCTION:
This hose consists of an inner tube of oil-resistant synthetic rubber, one and two wire braids reinforcement, and an oil- and weather-resistant synthetic rubber cover.
APPLICATIONS:
Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.
WORKING TEMPERATURE:
From -40degree up to +100 degree
Hydraulics hose
-
SAE 100 R17(wrapped cover/smooth cover)
CONSTRUCTION:
This hose consists of an inner tube of oil-resistant synthetic rubber, one and two wire braids reinforcement, and an oil- and weather-resistant synthetic rubber cover.
APPLICATIONS:
Hose range suitable to carry hydraulic fluids, such as glycol, mineral oils, emulsion, hydrocarbons, etc.
WORKING TEMPERATURE:
From -40 degree up to +100 degree
-
SAE 100R5(wrapped cover/smooth cover)
INNER TUBE: oil resistant synthetic rubber
REINFORCEMENT: one high tensile steel were braid
COVER: impregnated textile braid (1T/B)
TEMPERATURE RANGE:-40℃ to+100℃
